Product Description :

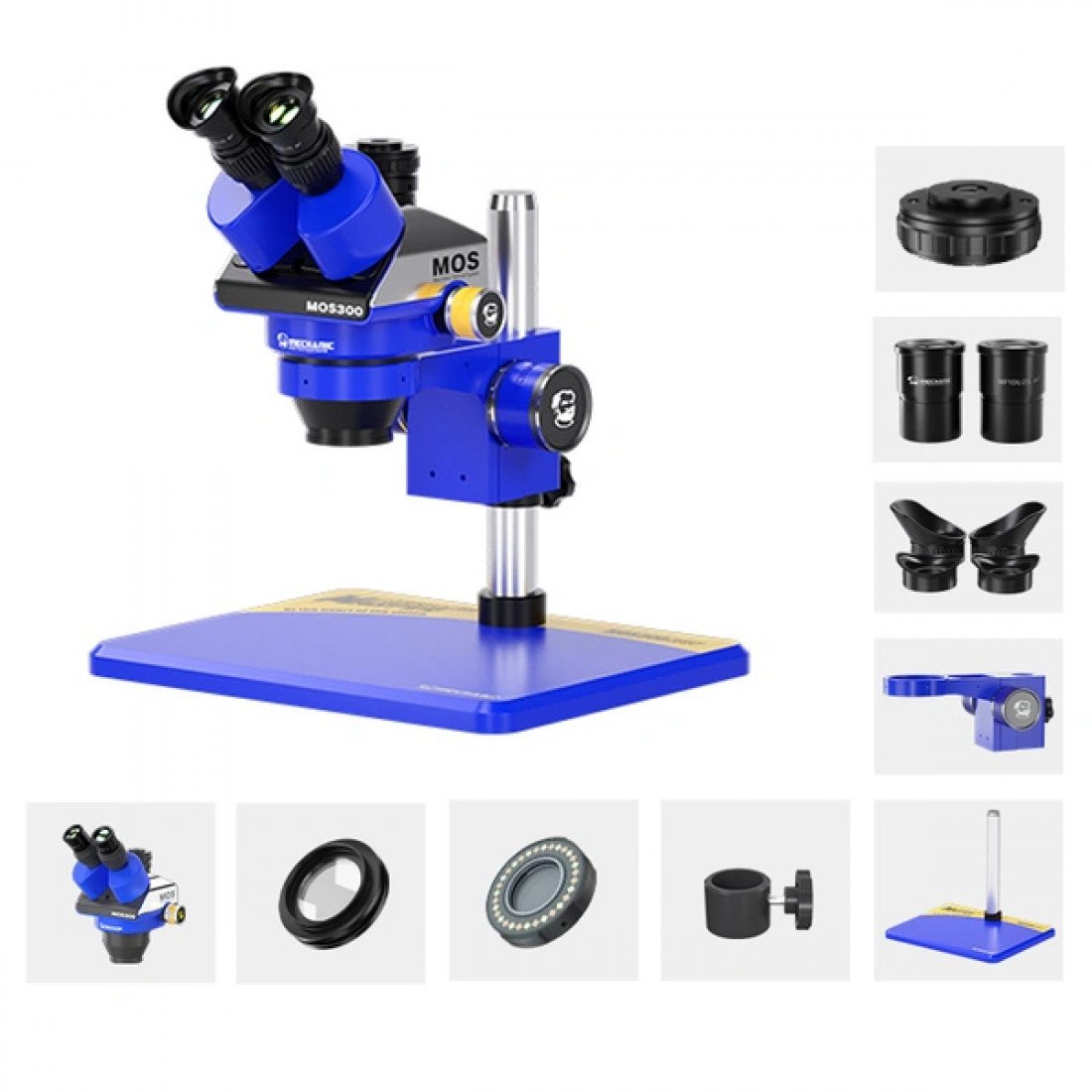

MECHANIC MOS300 Trinocular 360° Rotate HD Stereo Microscope

Mechanic Trinocular Stereo Microscope Binocular Stereo High Power Zoom Stereo Microscope For Motherboard Micro Welding Repair

Features:

The High-definition Optical Objective Lens, Precision Process Manufacturing, High-definition Coated Objective Lens

Pure Copper Material Lens Barrel, No Glare, Clear Picture, Do Not Miss Every Small Detail

WF1OX/22 Eyepiece, Binocular Diopter Can Be Adjusted ±5DP, Making Binocular Observation Easier

With The High Field Of View Wide-angle Eyepiece, Standard WF10X/22MM, It Is Still Convenient To Wear Glasses For Observation

0.6-4.5X Continuous Zoom, Optical System, Large Magnification Continuous Zoom, Sharp Imaging, And No Distortion, Very High Definition, Can Correctly Focus On Samples With Large Uneven Surfaces, So As To Obtain A Three-dimensional Image.

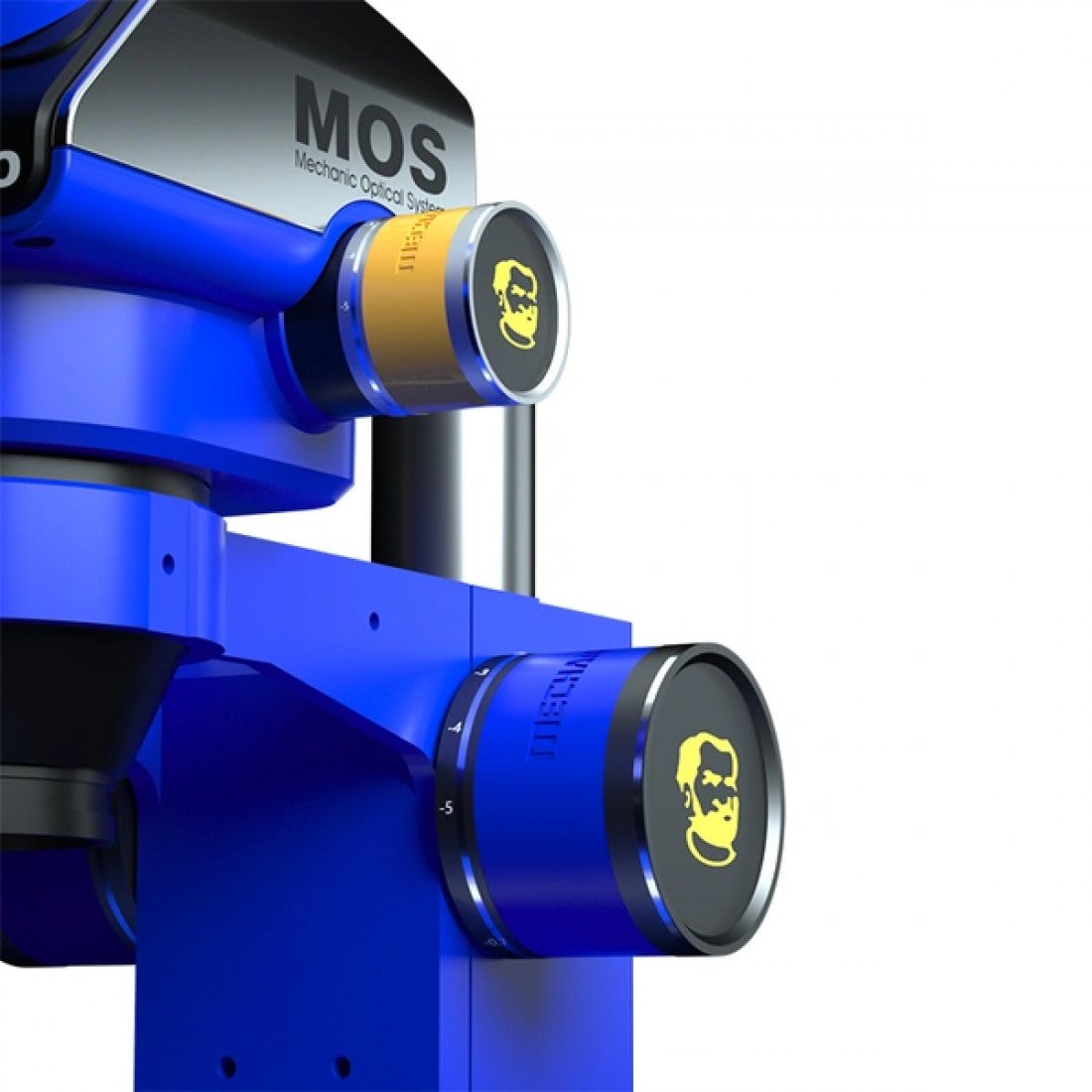

The Focusing Gear Rack Is Made Of Metal Material, Which Is Durable And Accurate With The Magnification, Making The Image Clearer

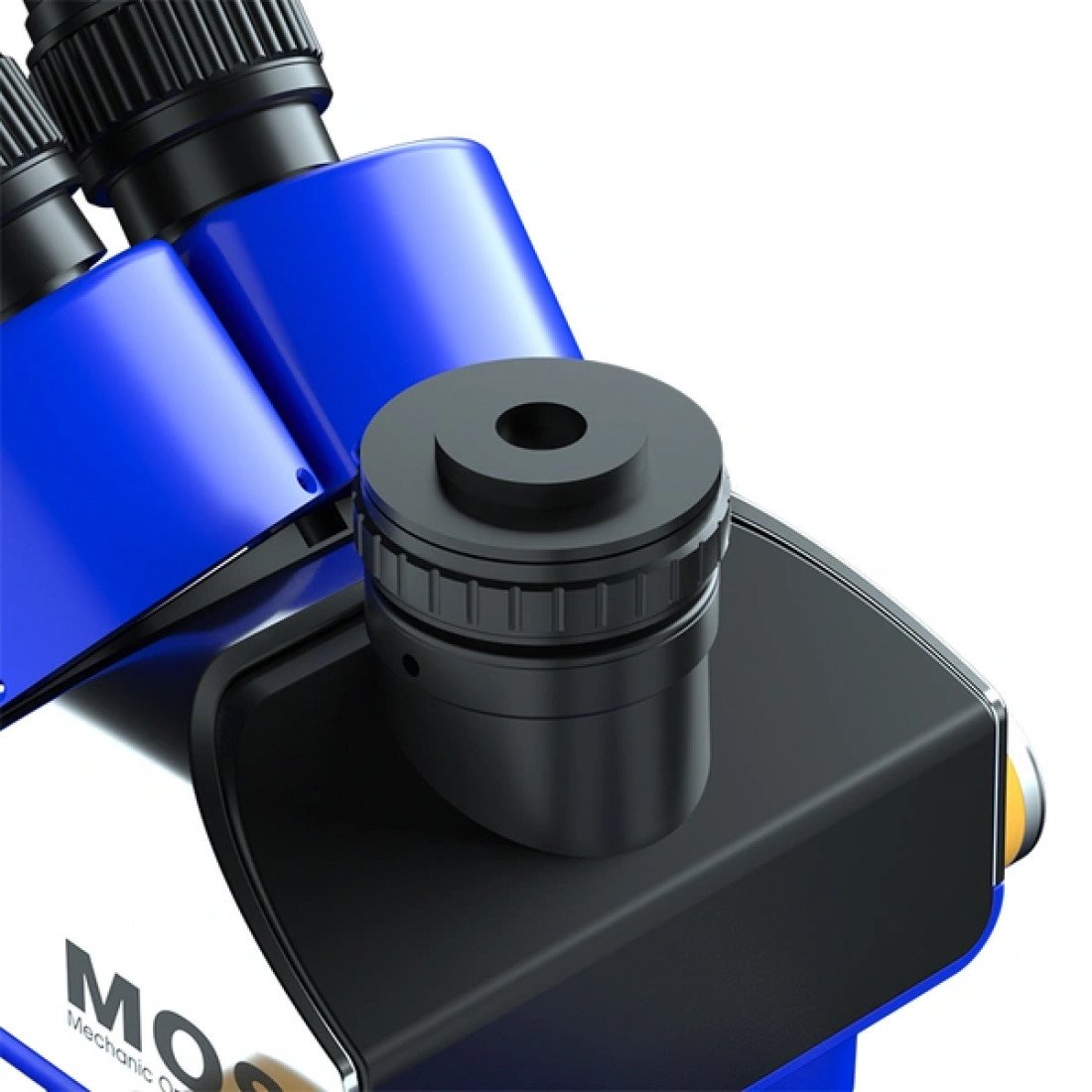

CTV2/5 Adapter, Clearer Image Than Ordinary TV Interface, Wider Field Of View, No Vignetting

True Trinocular High-definition Display, Matched With 4K High-definition Camera Display, Eye-clearing Observation Is Synchronized With The Screen Display Content, High-definition Large Screen Without Smear (only The Package Includes The High-definition Camera, The Bare Metal Does Not Include The High-definition Camera)

The Mirror Body Can Be Adjusted Freely, And The Microscope Body Can Be Adjusted 360°, Freeing Up The Workbench And Not Affecting Other Operations

Specification: MOS300-B11

Observation Head: 45decline, 360rotate, Pupil Distance 54—76mm; Bilateral Visual Adjustment ±5

Adjustable Eyepiece: Standard: WF10X22, High Angle Wide-angle Eyepiece Provides Convenience For Observers Wearing Glasses

Optional Eyepiece: WF10x22mm, WF15x15mm, WF20x10mm, WF25x9mm, WF30x8mm

Objective: 0.6X—4.5X Zoom Range,objective Magnification Ratio 1:10,

Auxiliary Lens: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X For Option

Magnification: Standard:6X–45X, Optional And Auxiliary Lenses Can Be Extended To 1.8X—90X Ontinuous Doubling

Working Distance: 100mm

Focus Arm: 76mm Diameter, 32mm Pole Size

Plate: Black/White Plate

Base: B11 Column Type Large Plate Base, Another Base Can Be Selected

Outward Size: 200mm(W)*273mm(D)*280mm(H)

Illumination: Optional LED Illumination, See LED Light Source Series Diagram For Details
